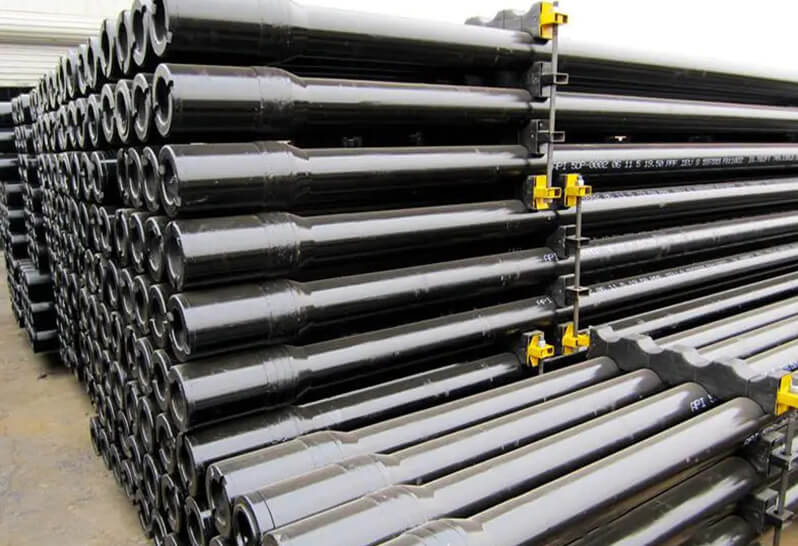

Description

Trenchless drill pipe is mainly used in horizontal directional drilling pipeline crossing laying project, the pipe body is made of special materials in line with API standards, stable performance, pipe end thickening in line with API 5DP standards, thickened pipe body quenching and tempering heat treatment, steel grade up to G105 or S135, joint blank forging production, quenching and tempering heat treatment after rough machining, surface nitriding treatment after finishing.

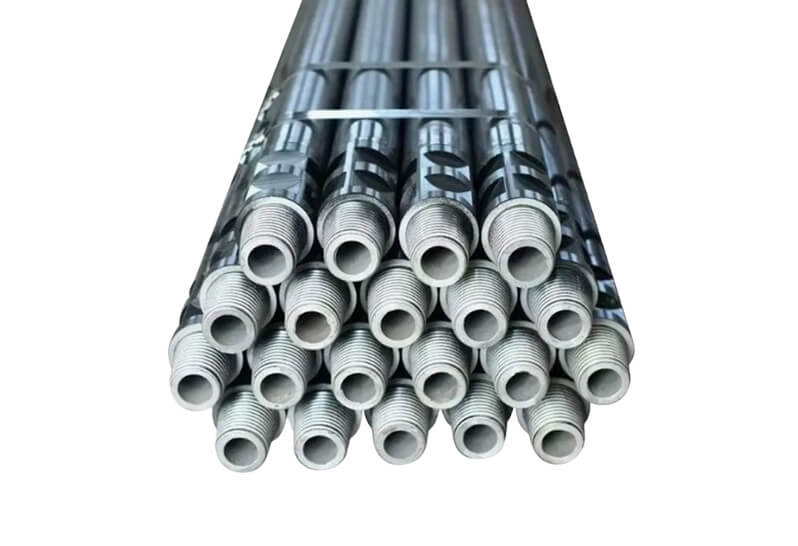

The twin-shoulder high torsion joint thread adopts the internal and external composite shoulder structure design, and all are machined by precision CNC lathes. The tightness of the thread has been strictly guaranteed, compared with the same specifications of the thread, there is a higher tensile strength and torsional yield strength, all the threads are equipped with thread gauges in line with international standards, so the production of drill pipe performance is stable and reliable.

We can not only produce trenchless friction welding drill pipe of different materials, lengths, diameters and wall thickths, but also customize drill pipe according to customer's requirements of material, length, wall thickness and thread.

Application

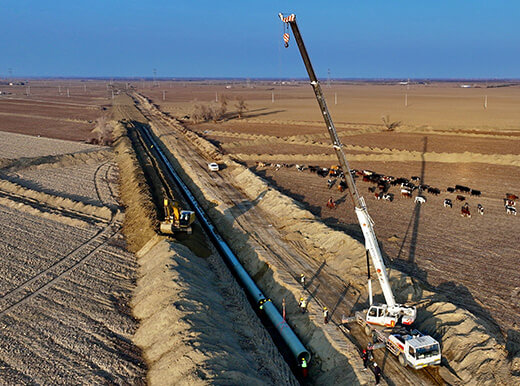

• Urban underground pipeline laying: used to lay water pipelines, sewage pipelines, gas pipelines, heat pipelines, etc

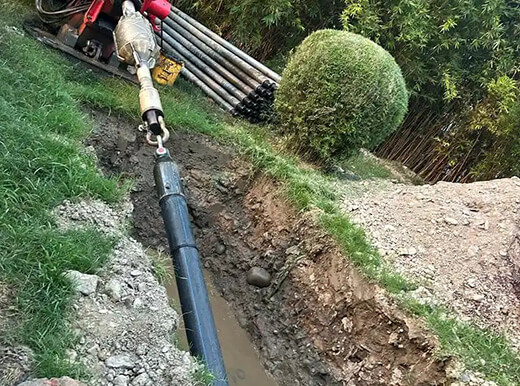

• Underground Pipeline Repair and Replacement: Trenchless repair or replacement of damaged underground pipes, such as corroded or cracked water or gas pipes.

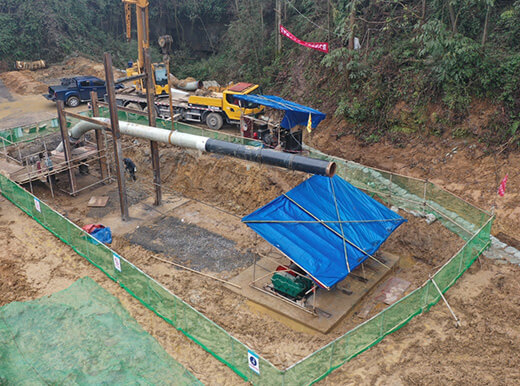

• Power cable laying: laying high-voltage power cables, submarine cables, etc., especially suitable for crossing rivers, lakes, roads, railways and other complex terrain.

• Other application：Directional drilling of oil and gas wells, gas pipeline crossing engineering, highway and railway underpass construction, bridge pile foundation construction assistance, water conservancy pipeline laying, etc

Specifications

Pipe OD		Grade	Welding form	Threa d type	Wall thickness		Joint OD		Length	torque	Min bending radius	Right-angle bending length	Max bending Angle	Max Angle of inclination
in	mm				in	mm	in	mm	mm	Nm	m	m		%
1.98	50	S135	Friction welding	50	0.25 6	6.5	2.1	53	2000	3000	32	50	3.6	6
1.98	50	S135	Friction welding	50	0.25 6	6.5	2.1	53	2500	3000	29	46	4.9	8
1.98	50	S135	Friction welding	50	0.25 6	6.5	2.1	53	3000	3000	29	46	5.9	10
2.375	60	S135	Friction welding	60	0.27 9	7.1	2.6 8	68	2000	6500	33	52	3.5	6
2.375	60	S135	Friction welding	60	0.27 9	7.1	2.6 8	68	2500	6500	33	52	4.3	7
2.375	60	S135	Friction welding	60	0.27 9	7.1	2.6 8	68	3000	6500	33	52	5.2	9
2.875	73	S135	Friction welding	NC23	0.31 5	8	3.2 1	82	3000	1300 0	45	71	3.8	6
2.875	73	S135	Friction welding	NC23	0.31 5	8	3.2 1	82	4000	1300 0	45	71	5.1	9
3	76	S135	Friction welding	NC26	0.35 5	9	3.4 5	88	3000	1600 0	45	71	3.8	6
3	76	S135	Friction welding	NC26	0.35 5	9	3.4 5	88	4500	1600 0	45	71	5.7	10
3.25	83	S135	Friction welding	83	0.35 5	9	3.6 3	92	3000	1800 0	65	102	2.6	4
3.25	83	S135	Friction welding	83	0.35 5	9	3.6 3	92	4500	1800 0	65	102	4	7
3.5	89	S135	Friction welding	NC31	0.36 8	9.35	4.1 5	105	3000	2400 0	85	133	2	3
3.5	89	S135	Friction welding	NC31	0.36 8	9.35	4.1 5	105	4500	2400 0	80	126	3.2	5
3.5	89	S135	Friction welding	NC31	0.36 8	9.19	4.1 5	105	6000	2400 0	80	126	4.3	7
4	102	S135	Friction welding	NC38	0.36 2	9.19	5	127	6000	4800 0	98	154	3.5	6
4.5	114	S135	Friction welding	NC38	0.36 2	9.19	5	127	6000	6400 0	110	173	3.1	5
4.5	114	S135	Friction welding	NC46	0.36 2	9.19	6.1 8	157	6000	6400 0	110	173	3.1	5
